current location:Home>Products>Optics Mounts Series>Optics Mounts

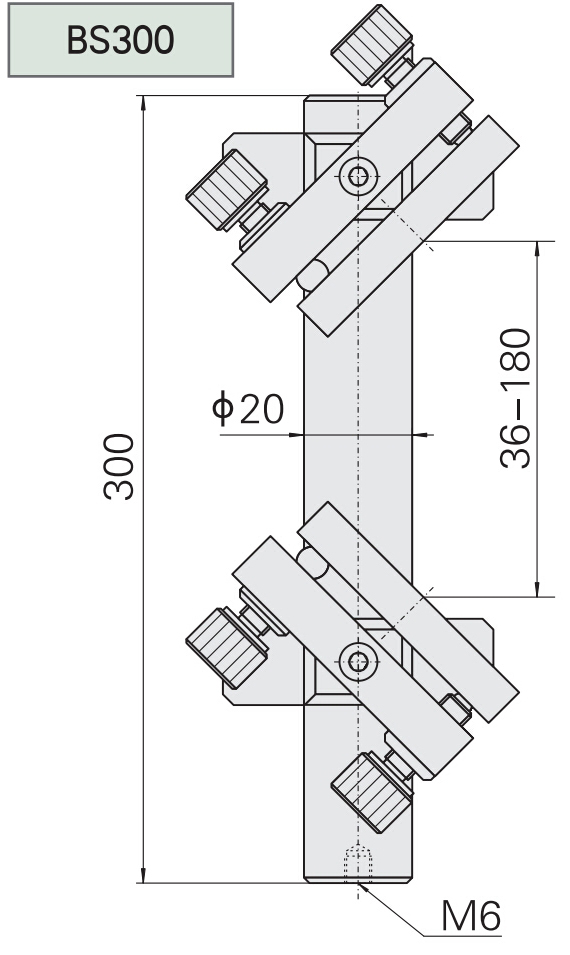

BS300 series beam steeper

    1. Can applied multiple diameters of plane mirror or spectroscope

    2. Driving by M6×0.25 fine thread screw

    3. High quality dished spring reset

    4. Used 20mm diameter support post to fix

    5. Tilt adjustment by double axis

  • description
  • parameters

BS300 series beam steeper




1. Can applied multiple diameters of plane mirror or spectroscope

2. Driving by M6×0.25 fine thread screw

3. High quality dished spring reset

4. Used 20mm diameter support post to fix

5. Tilt adjustment by double axis



Model

BS301

BS302

BS303

BS304

BS305

BS306

BS307

BS308

Lifting height for beammm

180

Applied diameter

15

20

25

25.4

30

40

50

50.8

Adjusting range of tilt

θx

±2.5°

θy

±2.5°

Weightkg

0.9
